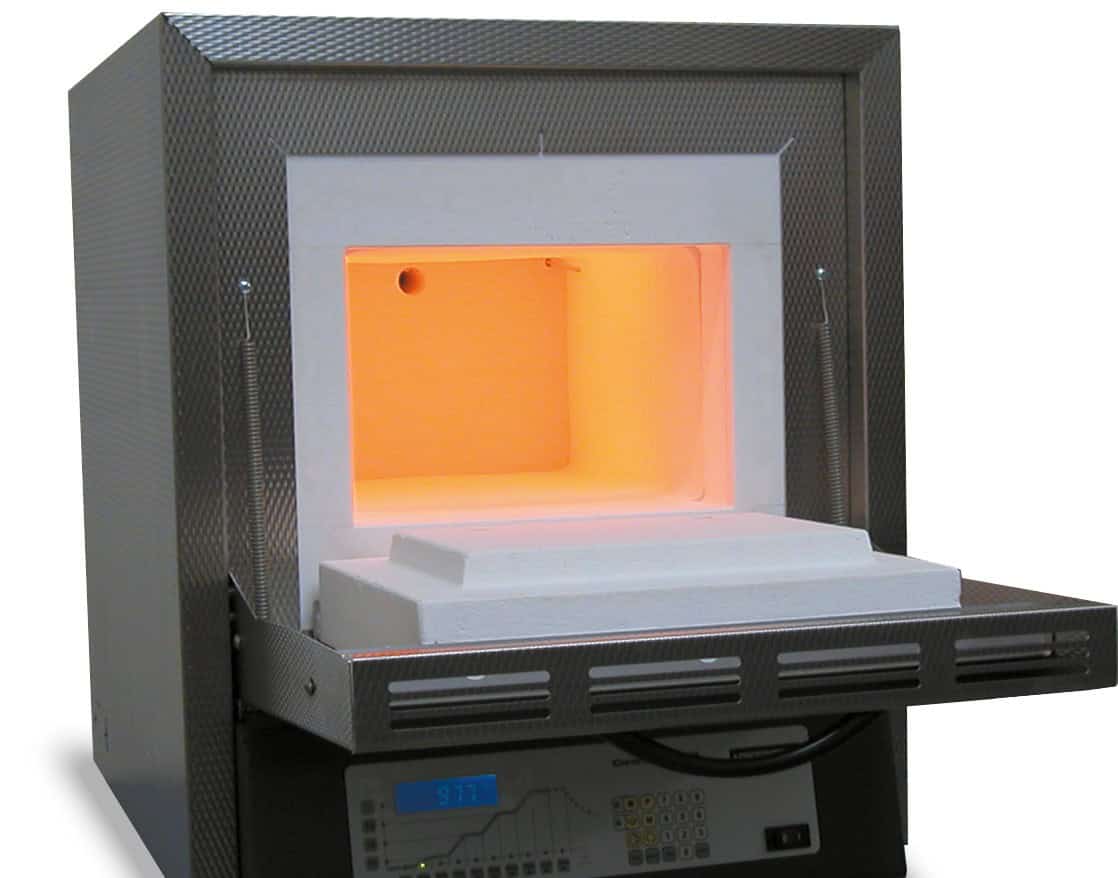

Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours.
We particularly recommend the muffle furnace L 9/11/SKM for heat treatment of aggressive substances. The furnace has a ceramic muffle with embedded heating from four sides. The muffle furnace thus combines a very good temperature uniformity with excellent protection of the heating elements from aggressive atmospheres. Another aspect is the smooth, nearly particle free muffle (furnace door made of fiber insulation), an important quality feature.
Standard Equipment
- Tmax 1100 °C
- Muffle heated from four sides
- Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours
- Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
- Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)

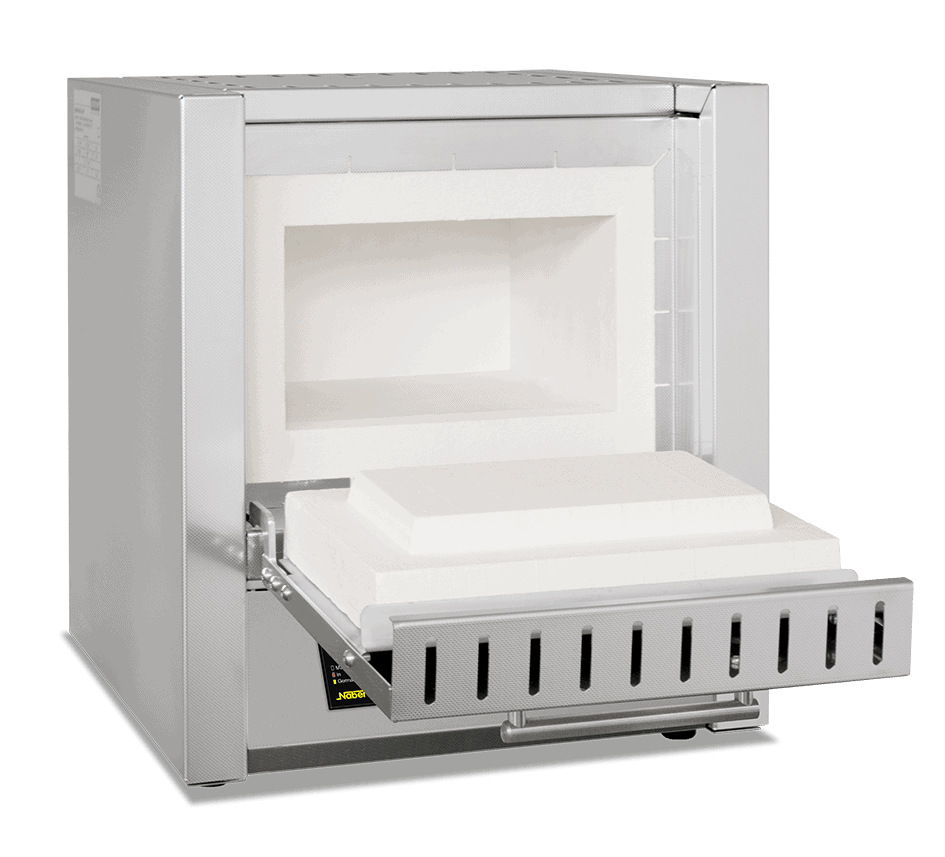

- Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
- Adjustable working air inlet in the door
- Exhaust air outlet in rear wall of furnace
- Controller B510 (5 programs with each 4 segments)
- Solid state relays provide for lownoise operation
- Defined application within the constraints of the operating instructions
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Specification
| Modell | Tmax | Inner dimensions in mm | Volume | Outer dimensions2 in mm | Connected | Electrical | Weight | Heating time | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in °C1 | w | d | h | in l | W | D | H | load in kW | connection* | in kg | in min4 | |
| L 9/11/SKM | 1100 | 230 | 240 | 170 | 9 | 490 | 505 | 580 | 3.4 | 1-phase | 50 | 75 |
| LT 9/11/SKM | 1100 | 230 | 240 | 170 | 9 | 490 | 505 | 580+3203 | 3.4 | 1-phase | 50 | 75 |
| 1Recommended working temperature for processes with longer dwell times is 1000 °C*Please see page 75 for more information about supply voltage 2External dimensions vary when furnace is equipped with additional equipment. Dimensions on request. 3Including opened lift door 4Heating time of the empty and closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE) |
||||||||||||
