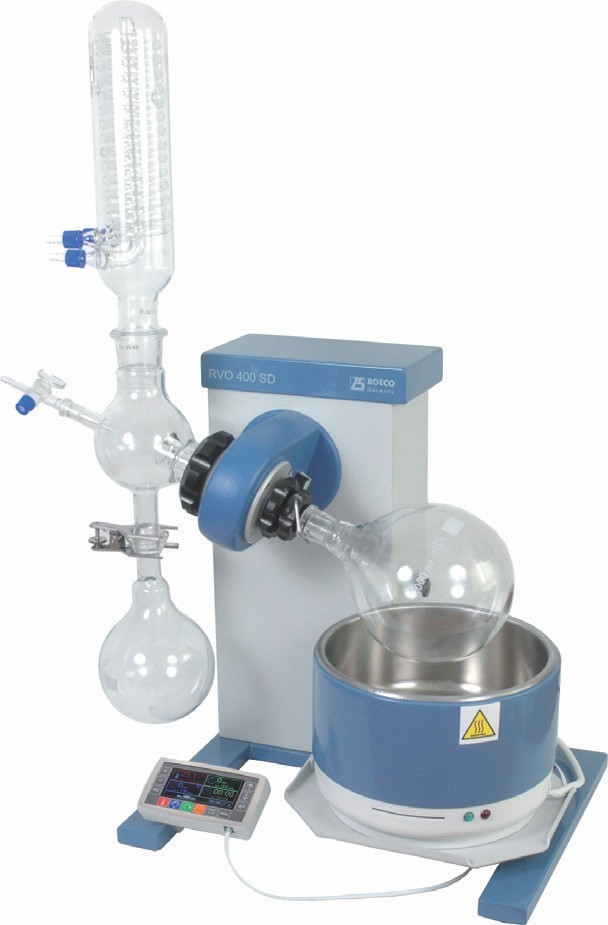

The RVO 400 SD conforms to the CE mark and all relevant EC standards and DIN norms and has been manufactured under ISO 9001:2000
- With digital display and control
- Water or oil bath
- Motorized lif
- Build in vacuum controler
- Variable inclination angle of evaporating flask
- With vertical or diagonal condenser
- fitted and designed for control and communication by PC
| Technical details: |
|
| Receiving flasks: |
100 – 2000 ml |
| Evaporating flasks: |
20 – 4000 ml |
| Rotation speed: |
0 – 280 rpm |
| Bath temperature: |
max. 100°C for water filling; max. 180°C for oil filling |
| Regulation accuracy: |
± 1°C up to 100°C; ± 3°C up to 180°C |
| Pressure measurement: |
absolute |
| Pressure difference: |
adjustable 1-500 mbar. |
| Digital settings: |
Temperature, rotations, vacuum |
| Gradient settings: |
Temperature, pressure |
| Temperature unit selection: |
°C, °K |
| Pressure units selections: |
hPa, Torr |
| Cooler condensation size: |
1200 sq cm (double sprial) |
| Switched vacccum pump: |
output max 650 VA, input max. 2000 VA |
| Power supply: |
230 V ±10%, 50/60 Hz |
| Power input: |
max. 2000 W (excluding vacuum pump) |
| Dimensions in mm (WxHxD): Net weight: |
650 x 900 x 360 (incl. glass) |
| Net weight: |
approx 20 kg |
| Code |
Description |
| BOE 8090020 |
BOECO Rotary Evaporator RVO 400 SD, with heating bath, motorized lift, built-in vacuum contoller, digital measuring and control system with vertical condenser, 230 V |
| BOE 8090021 |
Idem for 110 V |
| BOE 8090030 |
BOECO Rotary Evaporator RVO 400 SD, with heating bath, motorized lift, built-in vacuum contoller, digital measuring and control system with diagonal condenser, 230 V |
| BOE 8090031 |
Idem for 110 V |
