These high-temperature furnaces were specially developed to determine combustion loss during annealing and for thermogravimetric analysis (TGA) in the lab. The complete system consists of the high-temperature furnace for 1600 °C or 1750 °C, a table frame, precision scale with feedthroughs into the furnace and powerful software for recording both the temperature curve and the weight loss over time.

Standard Equipment

  • Defined application within the constraints of the operating instructions
  • Tmax 1600 °C or 1750 °C

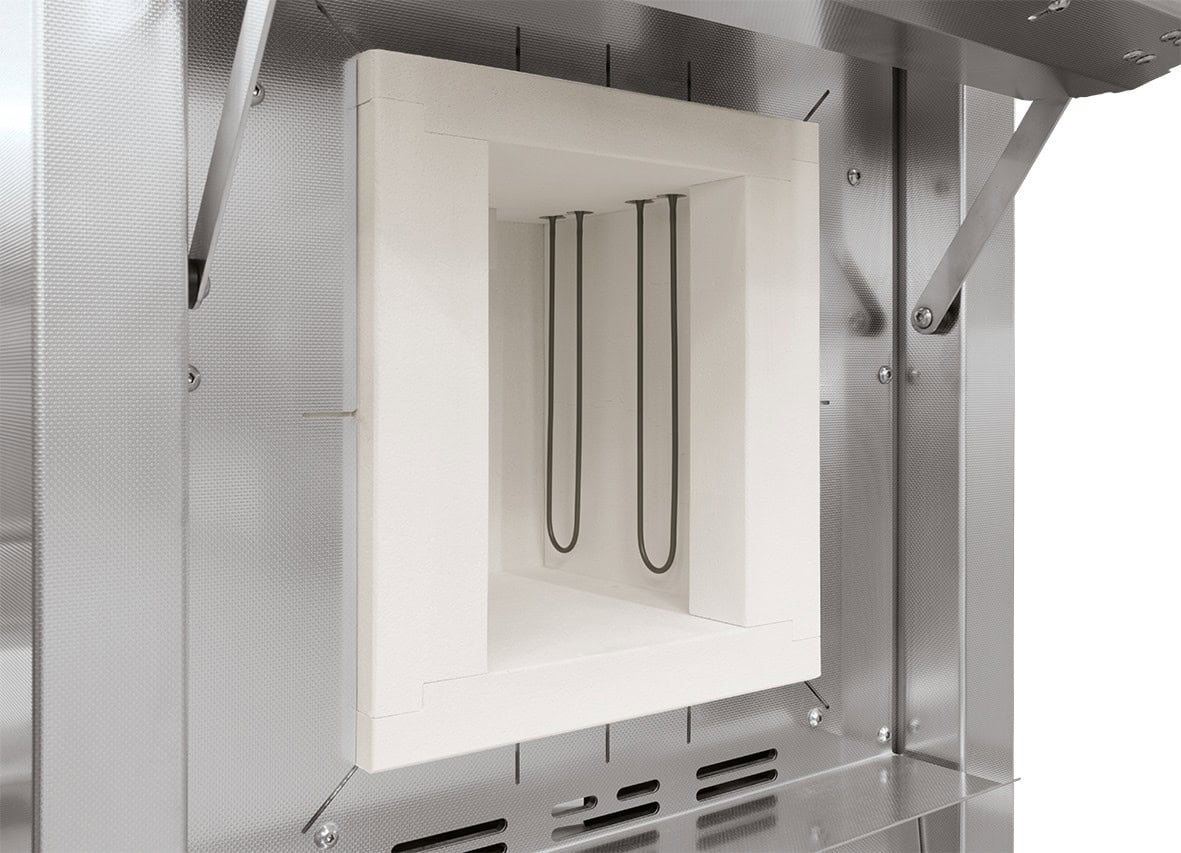

  • High-quality molybdenum disilicide heating elements
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Adjustable air inlet
  • Exhaust air opening in the roof
  • Type B thermocouple
  • Delivery includes base, ceramic plunger with base plate in the furnace lining, precision scale and software package
  • 4 scales available for different maximum weights and scaling ranges
  • Process control and documentation for temperature and combustion loss via VCD software package for monitoring, documentation and control


Model Tmax Inner dimensions in mm Volume Outer dimensions1 in mm Connected Electrical Weight Heating time
in °C w d h in l W D H load in kW connection* in kg in min2
LHT 04/16 SW 1600 150 150 150 4 655 370 890 5.0 3-phase3 85 25
LHT 04/17 SW 1750 150 150 150 4 655 370 890 5.0 3-phase3 85 30
1External dimensions vary when furnace is equipped with additional equipment. Dimensions on request.*Please see page 75 for more information about supply voltage
2Heating time of the empty and closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE rsp. 400 V 3/N/PE)
3Heating only between two phases


Scale Readability Maximum weighing range Weight of plunger Calibration value Minimum load
type in g in g in g in g in g
EW-2200 0.01 2200 incl. plunger 850 0.1 0.5
EW-4200 0.01 4200 incl. plunger 850 0.1 0.5
EW-6200 0.01 6200 incl. plunger 850 1.0
EW-12000 0.10 12000 incl. plunger 850 1.0 5.0
