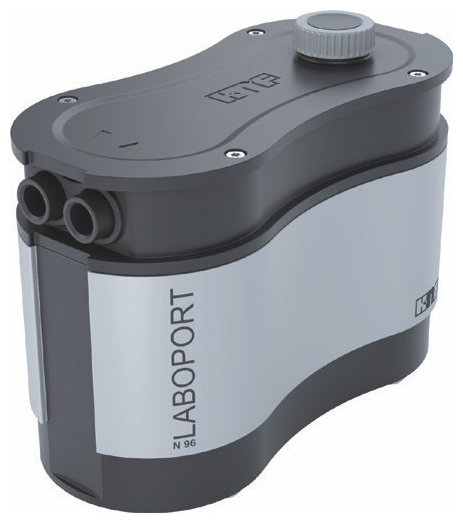

The N 96 combines a high flow rate with a compact design, saving valuable
space in the laboratory. Thanks to the manual rotational speed control, the
N 96 is quiet, very energy efficient, and can be optimally adjusted in
accordance with the application.
Potential applications include filtration, SPE, and liquid aspiration using a
vacuum.
- 100 % oil-free transfer – thereby pure transferring evacuation and compression of gases
- Extremely low footprint
- Maintenance-free
- Environmentally friendly
- PTFE-coated diaphragm for use with aggressive/corrosive gases and vapors
| Specification N96: | |
| Flow rate: | 7 l/min |
| Vacuum: | 130 mbar abs. |
| Pressure: | 2,5 bar |
| Connectors for tube: | ID 4 mm |
| Permissible gas and ambient temp: | +5…+40°C |
| Motor protection: | IP 40 |
| Weight: | 1,3.kgs |
| Dimensions LxHxB: | 156x119x75 mm |
| Code | Description |
| KNF 322806/00000 | KNF LABOPORT®N 96, 100-240 V, 50/60 Hz, Diaphragm Vacuum Pump Pump head: PPS, Diaphragm: PTFE-coated, Valves: FKM |
