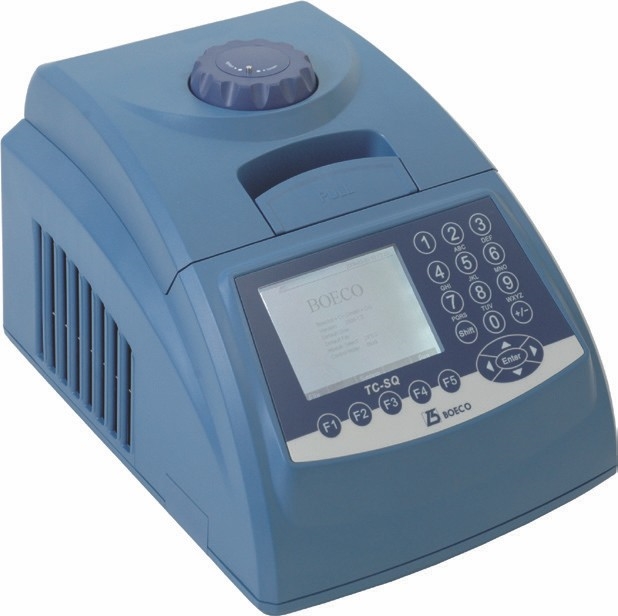

is a personal Thermal Cycler with compact structure and small footprint and a friendly user interface with big LCD display which gives reliable results for teaching and research laboratories.
The TC-SQ provides superior performance especially in the cooling and heating speed, temperature control accuracy and uniformity of the block.
| Specification |
|
| Sample Capacity: |
24 x 0,2 ml, 8-strip, 24 x 0,2 ml plate |
| Temperature control range: |
+ 4 ~ +99 °C |
| Heating Rate (Max): |
? 5,0 °C /sec |
| Cooling Rate (Max): |
? 4,0 °C /sec |
| Block Temp. Uniformity: |
? 0,3 °C |
| Block Temp. Accuracy: |
? 0,3 °C |
| Temp. of Hot Lid: |
30°C – 110 °C |
| Adjustability of Hot Lid Press: |
Yes |
| Temp. Control Mode: |
Block or Tube |
| Display: |
320 x 240 LCD |
| Program Storage: |
100 files |
| Max. Segments |
5 segments |
| Max. Program Steps: |
16 steps |
| Max. Cycles: |
99 cycles |
| Size: |
297 (L) x 212 (W) x 200 (H) mm |
| Weight: |
3,2 kg |
| Interface: |
RS 232 |
| Code |
Description |
| BOE 8085240 |
Thermal cycler TC-SQ, 220-240 V, 50/60 Hz with sample block for 24 x 0,2 ml |
| BOE 8085241 |
Thermal cycler TC-SQ, 100-120 V, 50/60 Hz with sample block for 24 x 0,2 ml |
| Code |
Description |
| BOE 8085185 |
Sample Block for 18 x 0,5 ml |
