| Specification: | MSH140 digital | MSH140 |
| Over all dimensions(LxBxH) (mm) | 156x248x104 | 156x248x104 |
| Set-up plate dimensions (mm) | 140 | 140 |
| Stirring quantity in Ltr (max) | 10 | 10 |
| Number of stirrer positions | 1 | 1 |
| Setup plate feature (Coating) | ceramic coated stainless steel plate | ceramic coated stainless steel plate |
| IP Rating | IP 21 | IP 21 |
| Product weight (kg) | 2,2 | 2,2 |
| Safety temp circuit | Yes | no |
| Safe temp. (°C) | 345 | no |
| Power supply | 110/240VAC | 110/240VAC |
| Maximum bar size (mm) | 25 – 60 | 25 -60 |
| Speed range (rpm) | 200 – 2200 | 200 – 2200 |
| Heating temp. range (°C) | 320 | 320 |
| Hot surface alert (°C) | 50 | 50 |
| Control | ||
| Time range | 1 to 999 minutes & continuous | no |
| Motor type | DC | DC |
| Motor rating input & Output (W) | 5-7 | 5-7 |
| Accuracy in RPM (+/- RPM) | +/-80 | – |
| speed step | 10 | – |
| Heat Output (W) | 600 | 600 |
| Power output (W) | 610 | 610 |
| Temp Accuracy [+/-K] | 1 | – |
| Temp increment | 1 | – |
| Temp indication | yes | no |
| Permissible ambient temp (°C) | 5-40 | 5-40 |
| Error code Display | yes | no |
| Housing Material | ABS | ABS |
| Display | Yes | no |
| Code | Description |

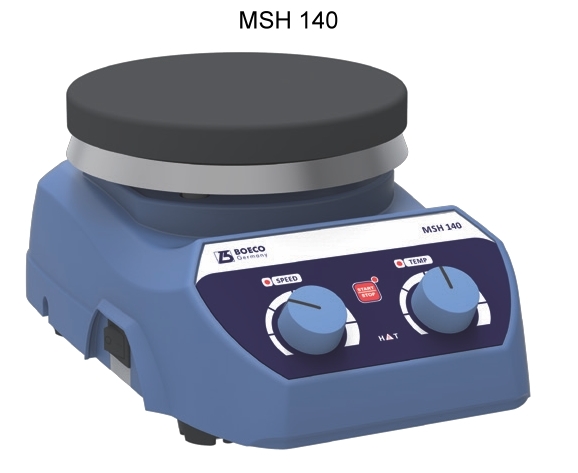

| BOE 8014000 | Magnetic stirrer with hotplate MSH 140, 240V |
| BOE 8014001 | agnetic stirrer with hotplate MSH 140, 110V |

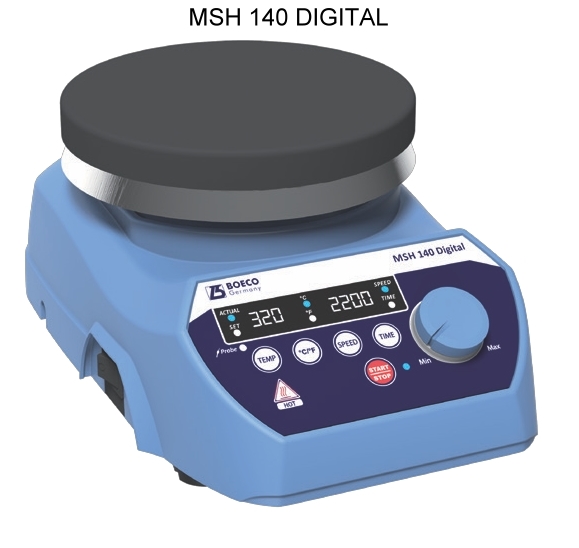

| BOE 8014110 | Magnetic stirrer with hotplate MSH 140 digital, 240V |
| BOE 8014111 |
