The BOECO S-220 (UV/VIS) and S-200 (VIS) are high quality, compact, low cost measurement systems for daily analysis in education, QC and basic research.
- Compact single beam optics with full range scanning
The single beam optics are compact and bench space saving. The long life Hamamatsu Xenon lamp optics in the S-220 ensure quick and reliable performance and the Tungsten Halogen lamp used in S-200 also provide a reliable measurement. - Color touch screen operation

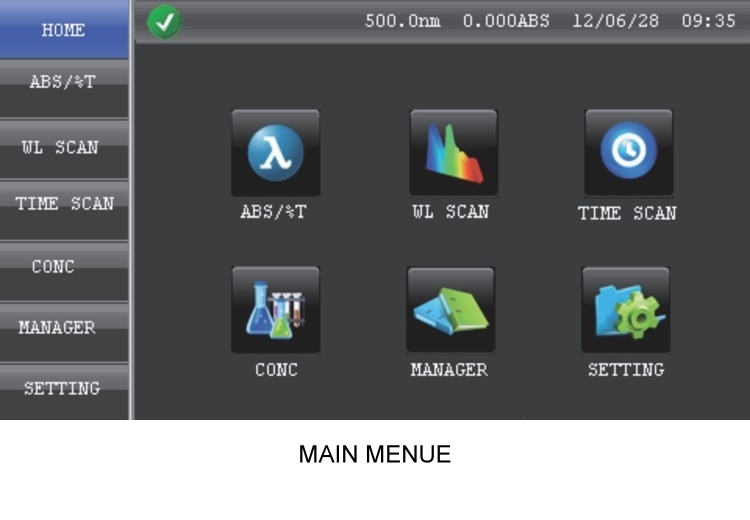

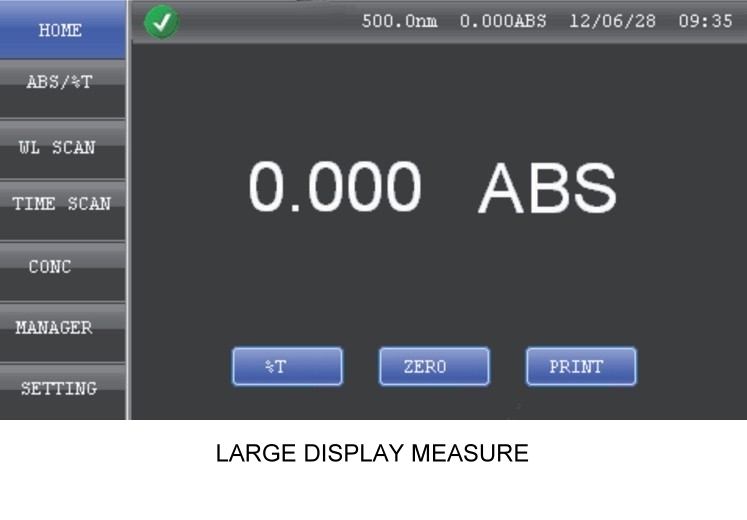

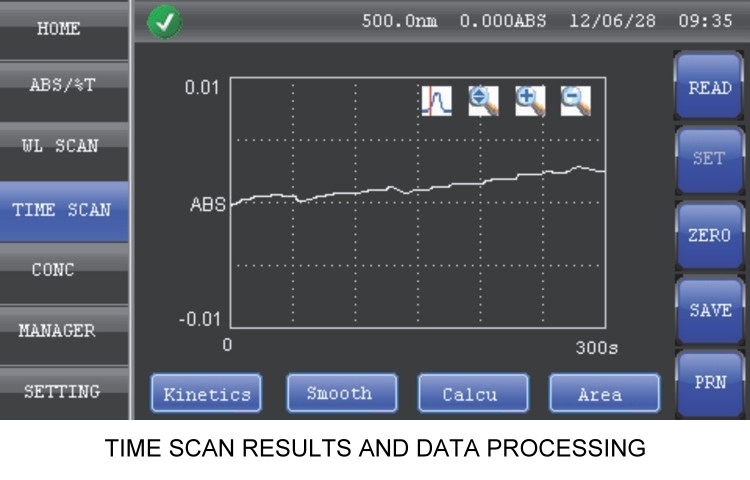

The intuitive color touch screen operation provides simple access to an extensive range of functions. The touch screen is sensitive to stylus and laboratory gloves. Icon driven on-board software improves accessibility and the graphical display allows spectrum or standard curve to be shown on the screen. The forward and back quick key allows the user to proceed or swiftly return to the process. An enlarged data display for photometry measurement makes result reading easier. - Various measurement modesOperation modes include photometric, multiple wavelength analysis, spectrum scanning, time scan and kinetics; direct concentration results are included.
- Optional accessories
A variety of accessories are included such as test tube holder, flow cell with sipper, temperature control holder, long path length cuvette holder & multiple cell holder are available to enhance different application needs. - Storage and data output
External storage with SD card and free downloadable PC Software MasterReport (www.boeco.com) allows data export to PC in compatible text or spreadsheet format for further data processing in the PC. Method and result storage is almost unlimited by exchanging SD card when needed. Printer options are available for direct result printing with graphics. - Validation function
To ensure optimum instrument performance, self diagnosis functions are equipped in GLP/GMP feature for performance validation and auditing.
| Specification | S-200 Vis | S-220 UV/Vis |
| Wavelength Range: | 320 to 1100nm | 190 to 1000nm |
| Spectral Bandwidth: | 6nm | 5nm |
| Transmittance accuracy: | ±0,5% T (NIST 930 Filter) | ±1% T (NIST 930 Filter) |
| Transmittance repeatability: | 0.2% T | 0.5% T |
| Baseline flatness: | ± 0.002 Abs (330-1090nm) | ± 0.005 Abs (200-990nm) |
| Noise level: | ? 0.001 Abs (500nm) | ? 0.005 Abs (250 nm) |
| Baseline stability: | ? 0.001 Abs/h (500nm) (after 2 hours warm up) | ? 0.005 Abs/h (250nm)(after 2 hours warm up) |
| Stray light: | ? 0.5% T | ? 0.5% T |
| Wavelength controlled variable: | 0.2nm | 0.2nm |
| Wavelength accuracy: | ± 1nm | ± 2nm |
| Wavelength repeatability: | 2400nm/min (0,2 sampling interval without filter) | 300nm/min (0,2 sampling interval without filter) |
| Wavelength scan speed: | (0,2 sampling interval without filter) | (0,2 sampling interval without filter) |
| Wavelength move speed: | to any specified position within 1sec. | to any specified position within 1sec. |
| Absorbance: | -0.3 to 1.999 | -0.3 to 1.999 |
| Transmittance: | 0 to 199.9% | 0 to 199.9% |
| Spectrum Scanning: | Yes | Yes |
| Concentration: | -300 to 1999 | -300 to 1999 |
| Selectable Resolution: | 1, 0.1, 0.01 or 0.001 | 1, 0.1, 0.01 or 0.001 |
| Light source: | Tungsten Halogen lamp | pulsed-Xenon lamp |
| Detector: | Silicon photodiode | Silicon photodiode |
| Display screen: | 4,3 inches colorful touch LCD screen | 4,3 inches colorful touch LCD screen |
| Printer: | specified 80-column thermal printer (series port) | specified 80-column thermal printer (series port) |
| Metering mode: | Single beam | Single beam |
| Memory: | SD card storage | SD card storage |
| Time Scan: | Graphical and calculated concentration value | Graphical and calculated concentration value |
| Analysis: | Absorbance and wavelength of peaks and valleys | Absorbance and wavelength of peaks and valleys |
| GLP: | Real time clock and calendar, Self Diagnosis | Real time clock and calendar, Self Diagnosis |
| Size: | 400 (W) x 280 (D) x 160 (H) mm | 400 (W) x 280 (D) x 160 (H) mm |
| Power requirement: | AC, 100-240V, 50/60Hz | AC, 100-240V, 50/60Hz |
| Power consumption: | 100VA | 100VA |
| Communication ports: | Serial printer port connects thermal printer, USB port connects PC, SD card port saves data and measurement methods, Accessories port connects and controls serval options | Serial printer port connects thermal printer, USB port connects PC, SD card port saves data and measurement methods, Accessories port connects and controls serval options |
| Weight: | 4 kgs | 4 kgs |
| Code | Description |
| BOE 8620000 | Model S-200 Vis Spectrophotometer, single beam with full range scanning and color touch screen operation. Supplied with 10 x 10 mm cuvette holder |
| BOE 8622000 | Model S-220 UV/Vis Spectrophotometer, single beam with full range scanning and color touch screen operation. Supplied with 10 x 10 mm cuvette holder |
