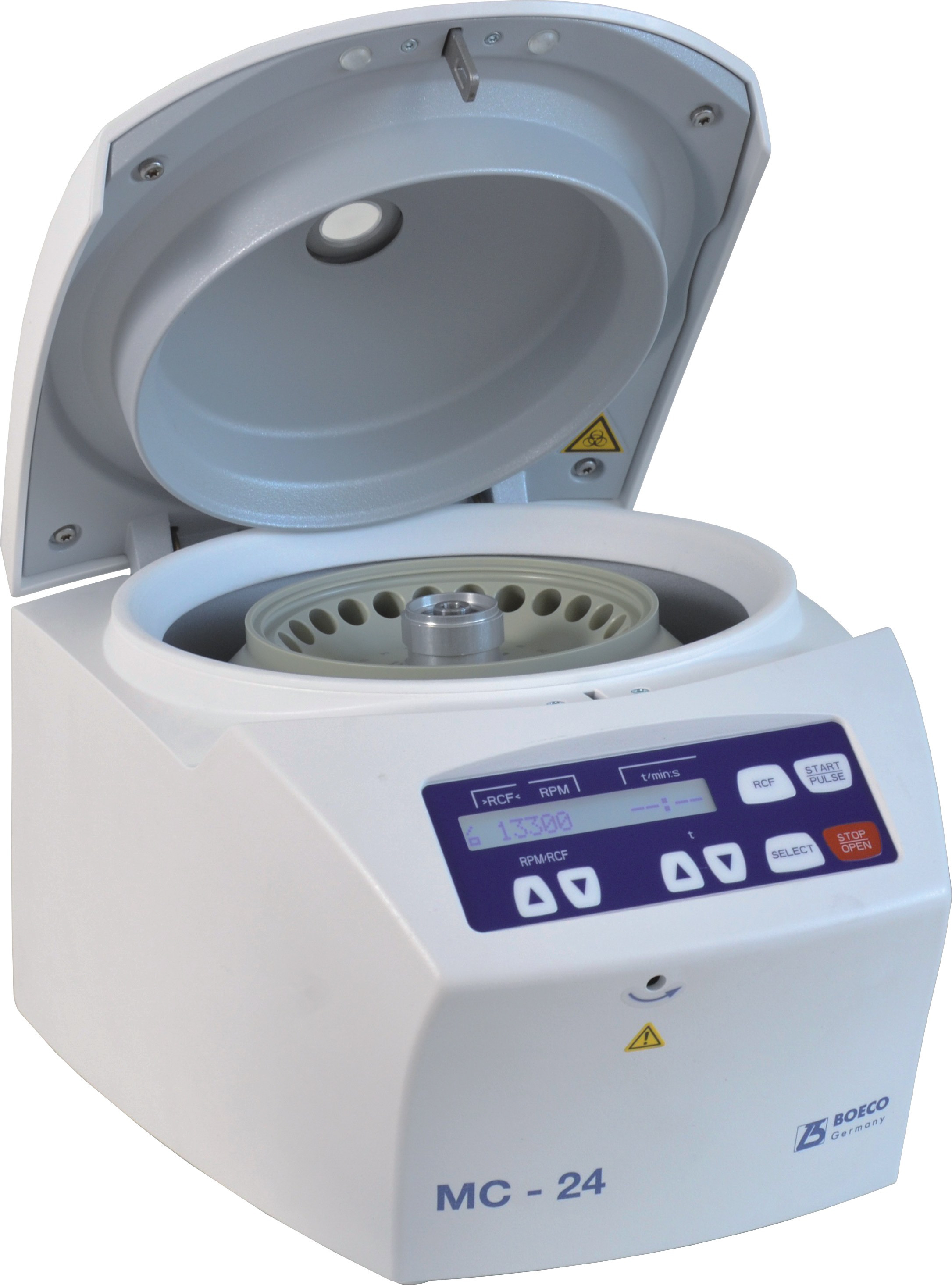

BOECO Centrifuge MC-24

In stock

Controls and displays

During centrifugation the actual values of the parameters are indicated
Entry of the running parameters via foil keypad
Speed display in RPM or RCF
RPM input from 200 to 10.000 in steps of 10, starting from 10.000 to the maximum speed in steps of 100
RCF input from 200 to 10.000 in steps of 1, starting from 10.000 to the maximum speed in steps of 10
Time t/min: 1 – 99 min. in steps of 1min., Time t/sec: 1-59 sec. in steps of 1 sec., Continuous operation
Brake stage, selectable between fast and slow
Pulse key: For short centrifugation operations
Open lid key

safety

Lid locking and holding device
Emergency lid lock release
Motor overheating protection A Imbalance switch-off
Deep metal rotor chamber (die-cast-zinc) to securely accomodate the rotor

The M-24 A conforms to safety regulations such as IEC 61010 or the CE
mark and all relevant EC standards and DIN norms and has been manufactured
under ISO 9001:2008

Technical details
Max. RPM (speed) / RCF:	14,000 rpm / 18,845 RCF
Noise level:	=59 dB(A)
Emission / Immunity:	EN / IEC 61326-1 class B / FCC class B
Dimensions in mm:	228 (H) x 262 (W) x 352 (D)
Net weight:	approx. 11 kg

Code	Description
BOE 01203-13	BOECO centrifuge MC-24, 200-240 V, 50-60 Hz, without rotor
BOE 01203-12	BOECO centrifuge MC-24, 100-127 V, 50-60 Hz, without rotor
